Adjustable routing frame 700x700mm Max-Kit
In stock, delivery in 1-2 business days
€129.95

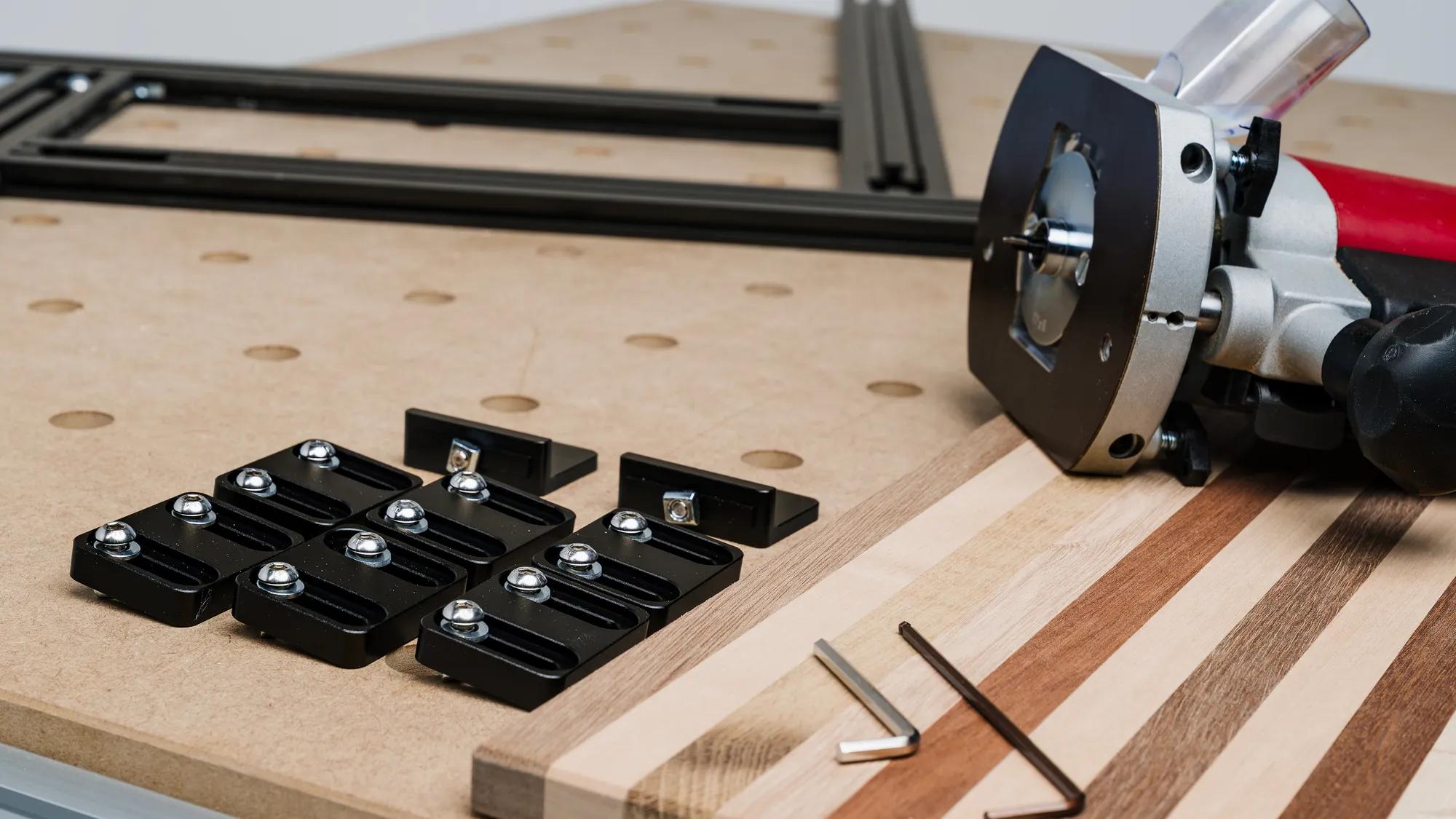

- 4x frame profiles 700 mm
- 6x clamping jaws
- 2x fixing jaws
- 1x anti-tilt device
- 2x Allen keys
sauter GmbH
Arzbergerstraße 4 82211 Herrsching a. Ammersee Germany
[email protected]
https://www.sautershop.de
- User manual 1 (PDF, DE)

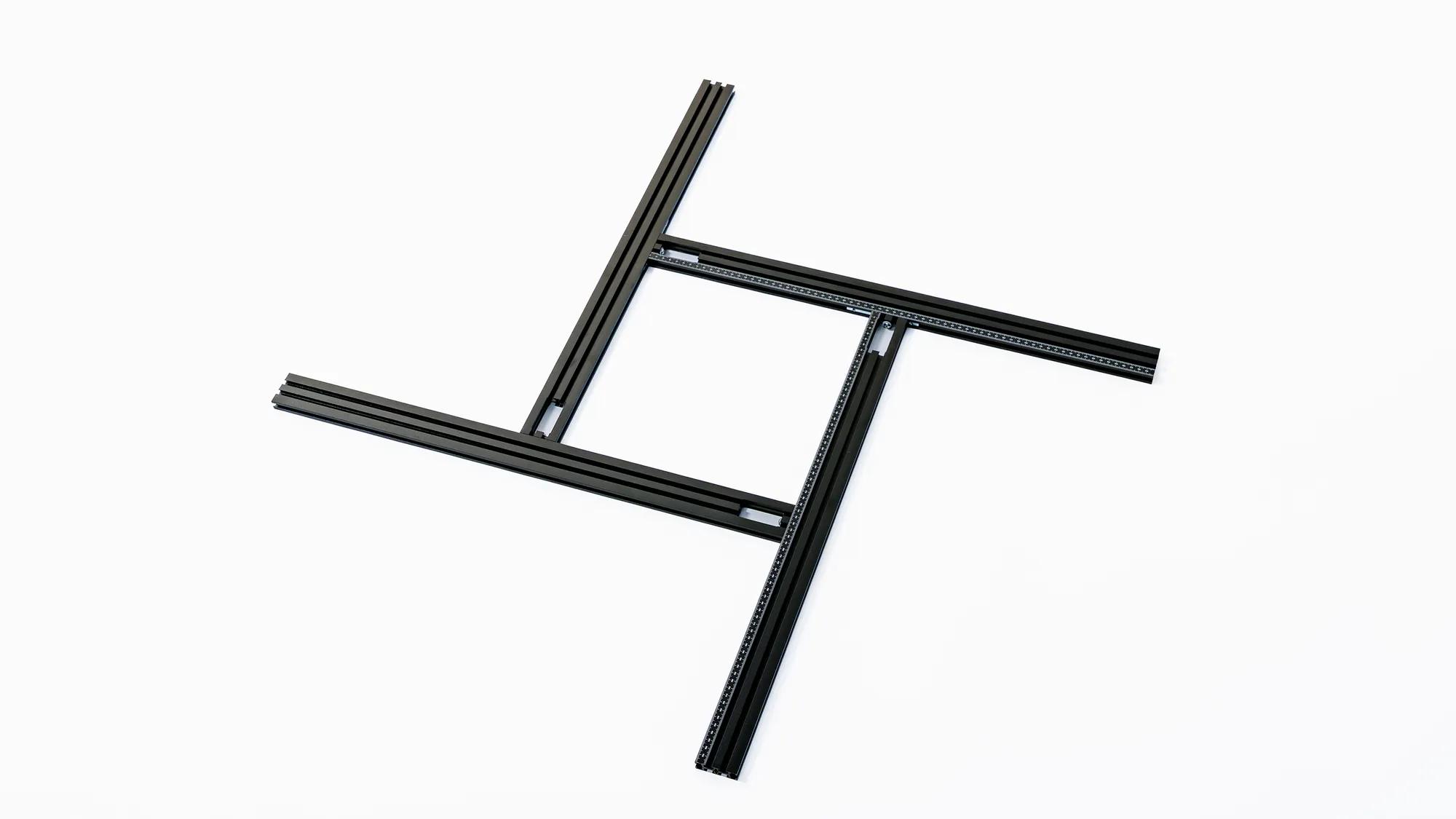

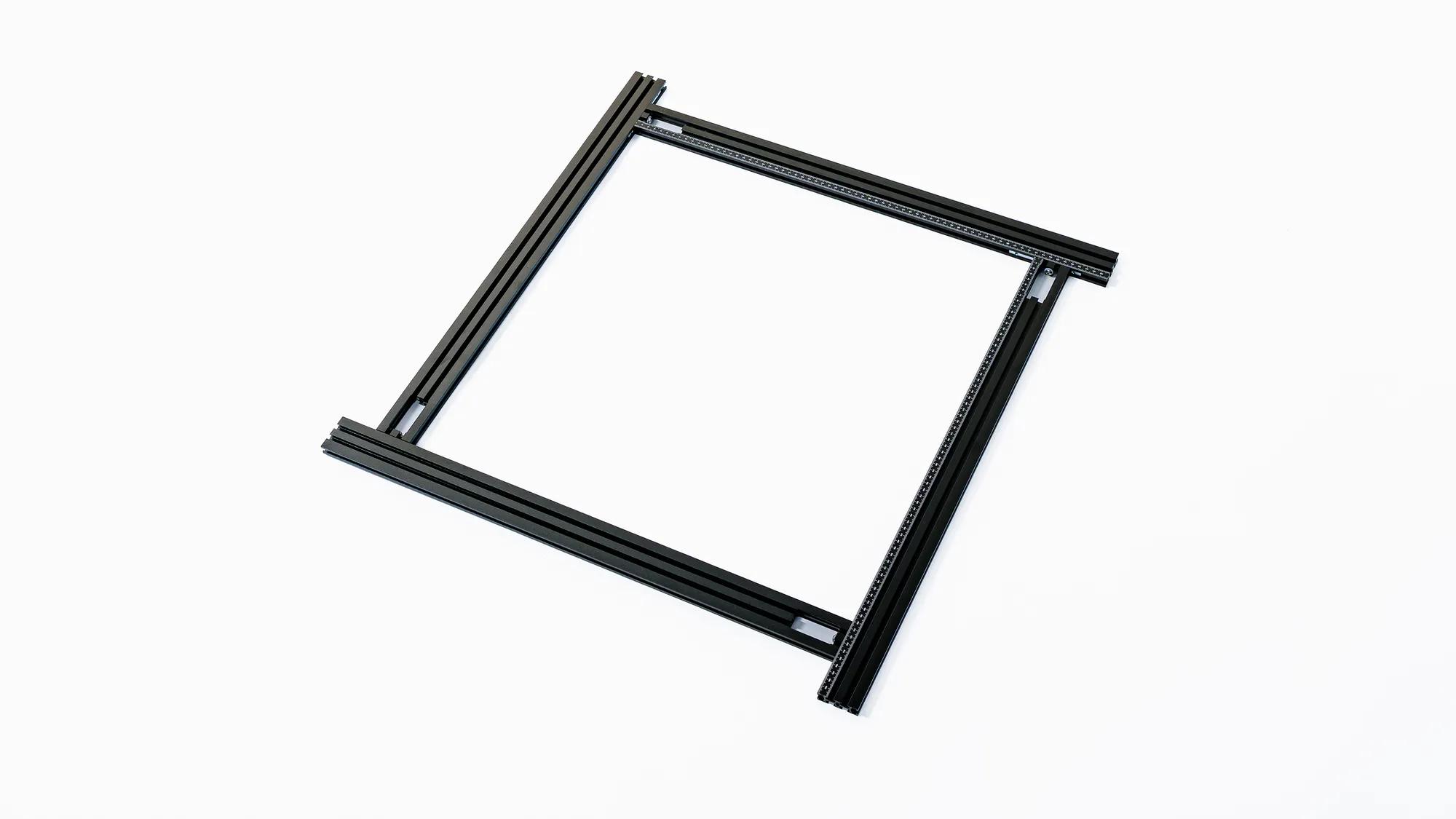

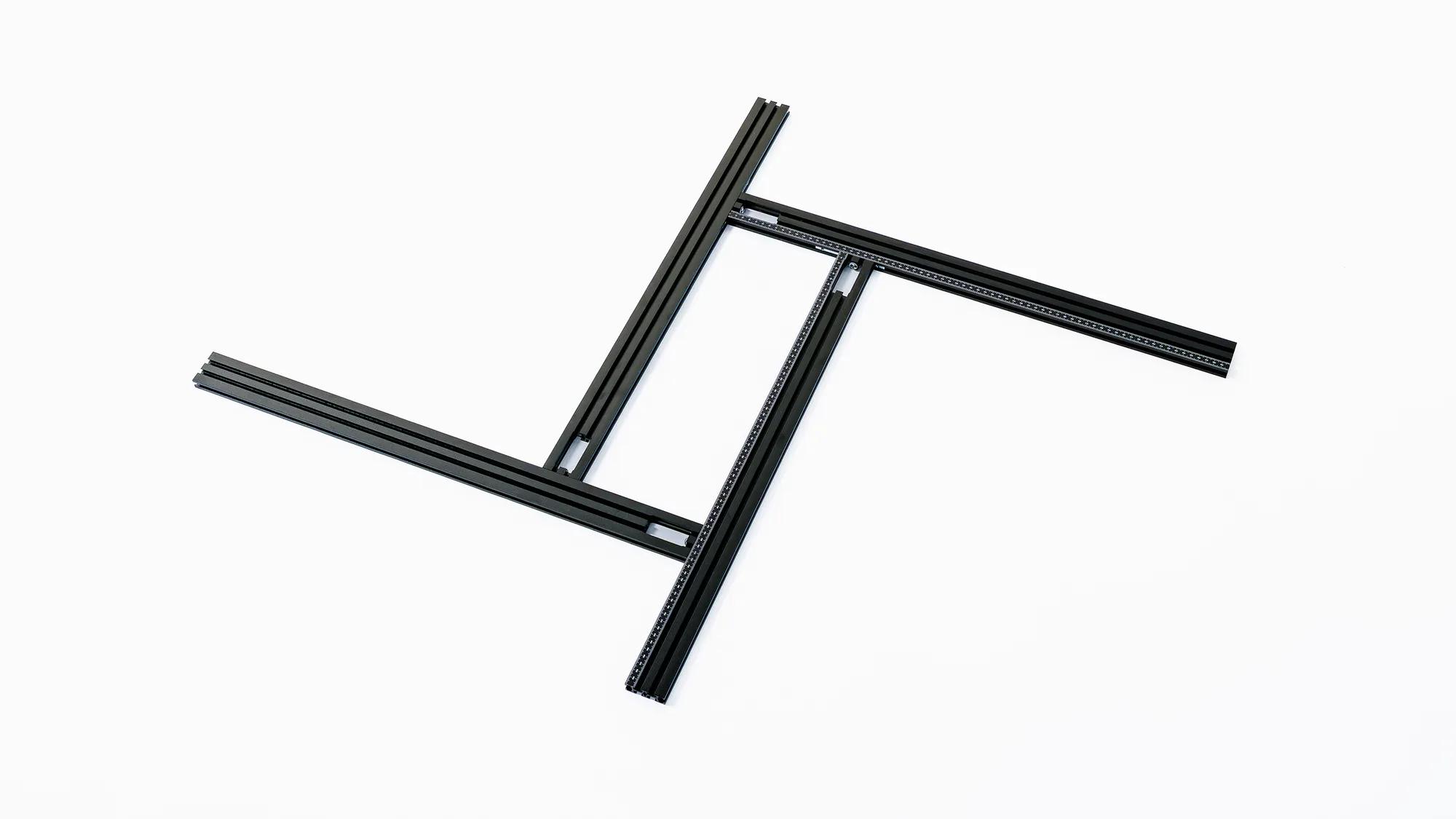

Adjustable routing frame sauter 700x700mm Max-Kit
Technical data
-
Routing area
up to 670 x 670 mm
-
Dimensions of aluminium profiles (L x W x H)
700 x 50 x 17 mm each
-
Groove dimensions of aluminium profile (W x H)
11.7 x 5.7 mm
-

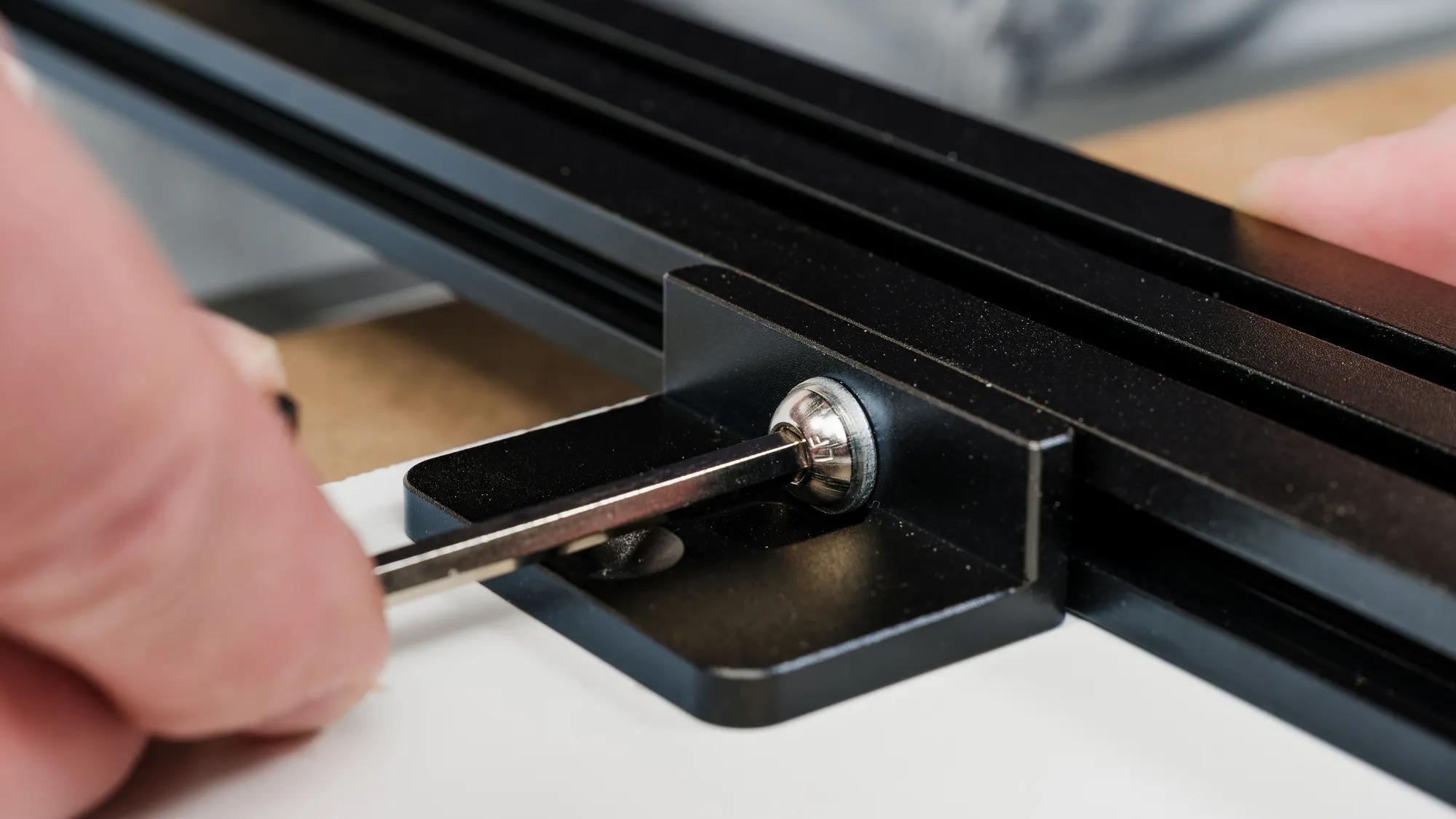

Connector screws
M4 x 13 (3 mm hex key)

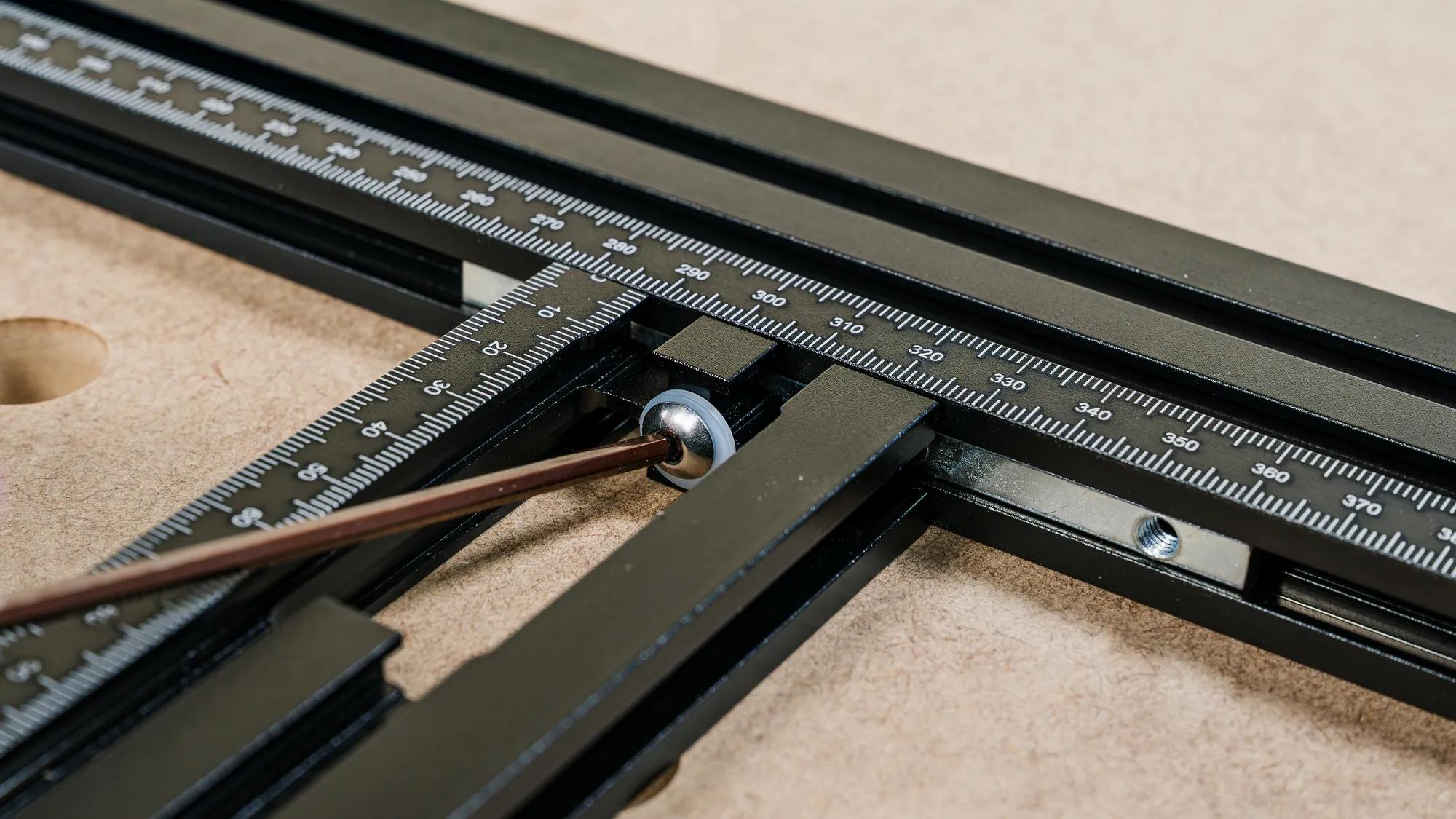

- Metric scale
-
Threads on anti-tilt protection
M4 & M5
-
Routing frame material
anodised aluminium
Features & benefits

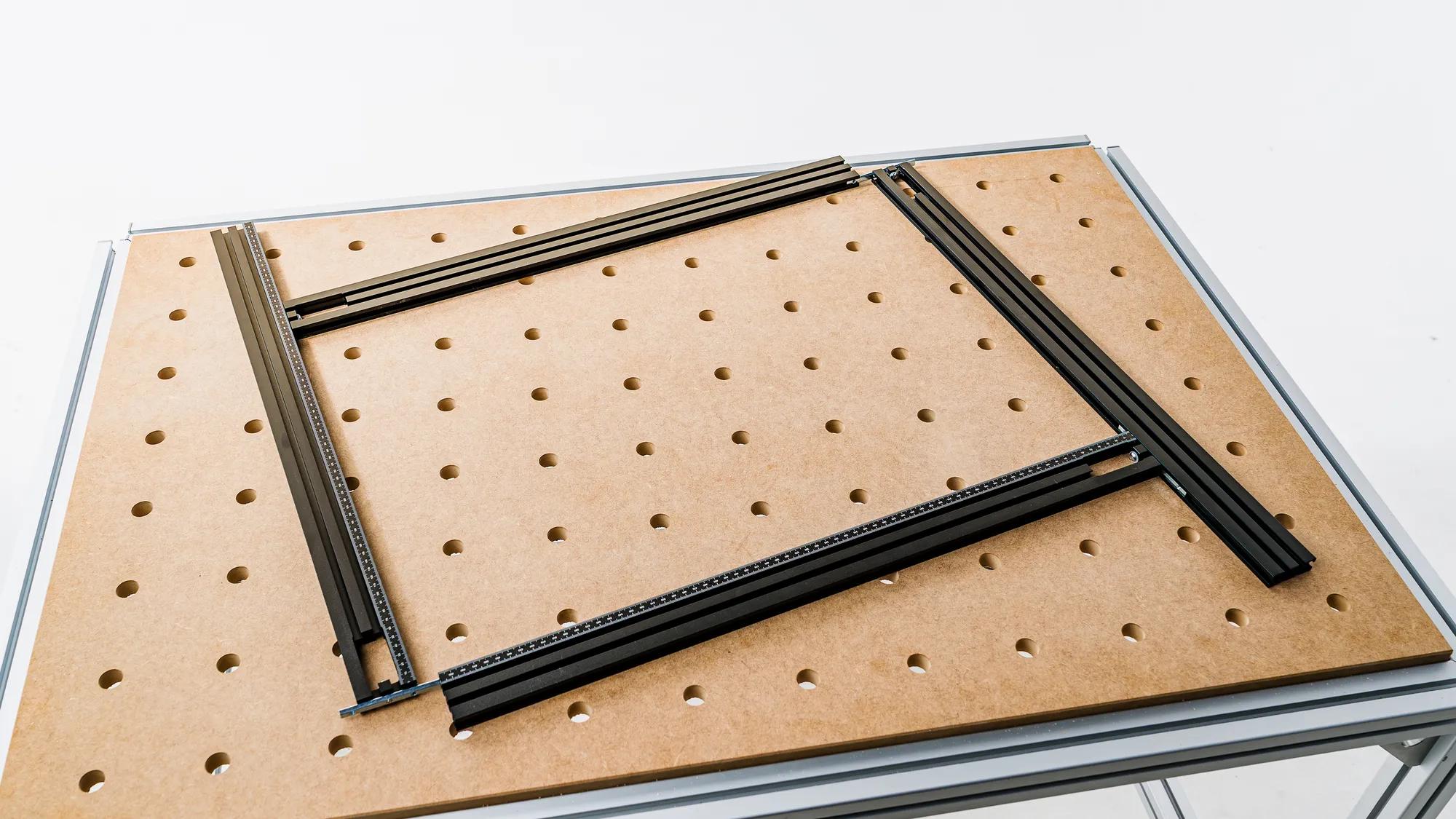

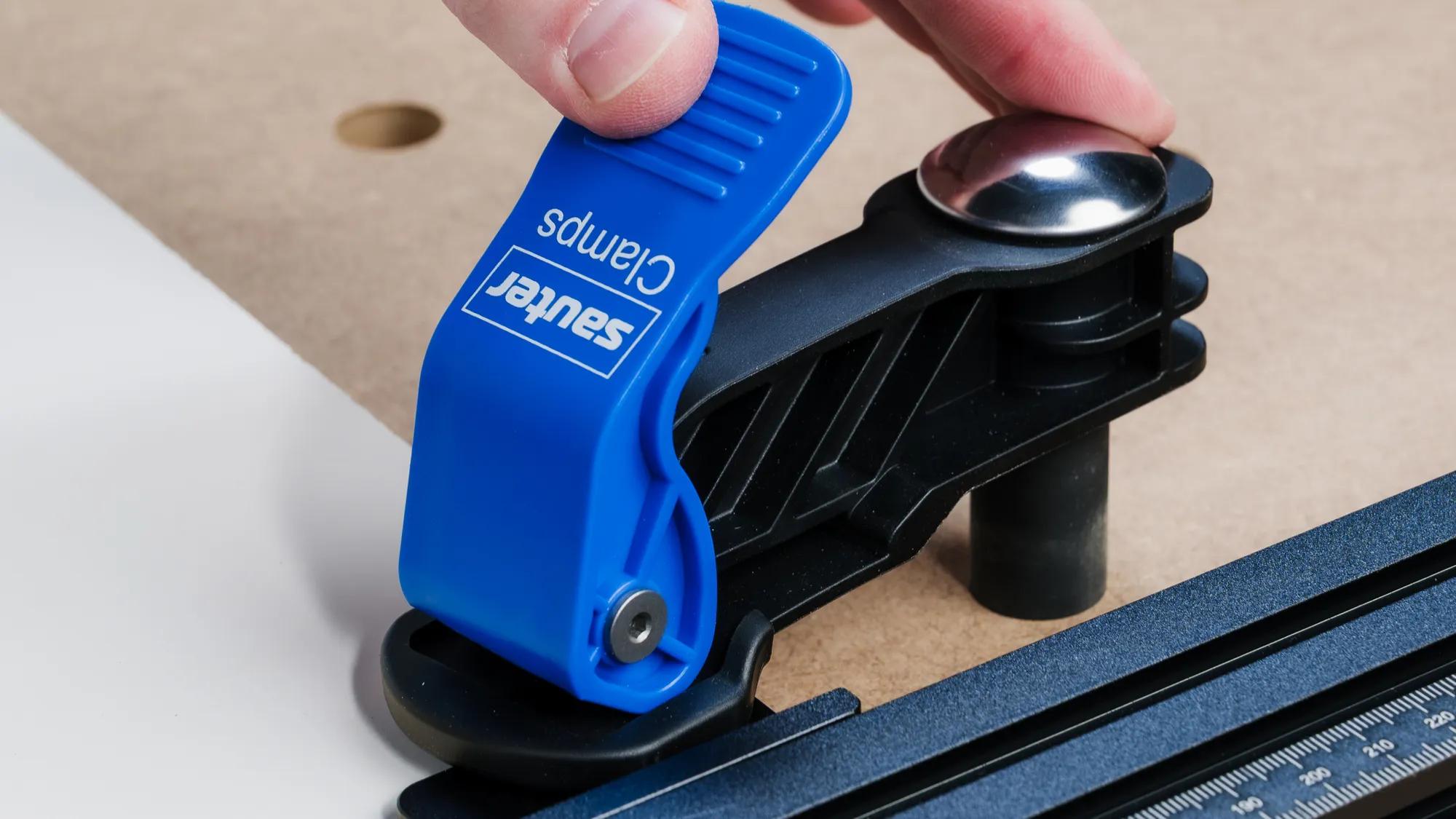

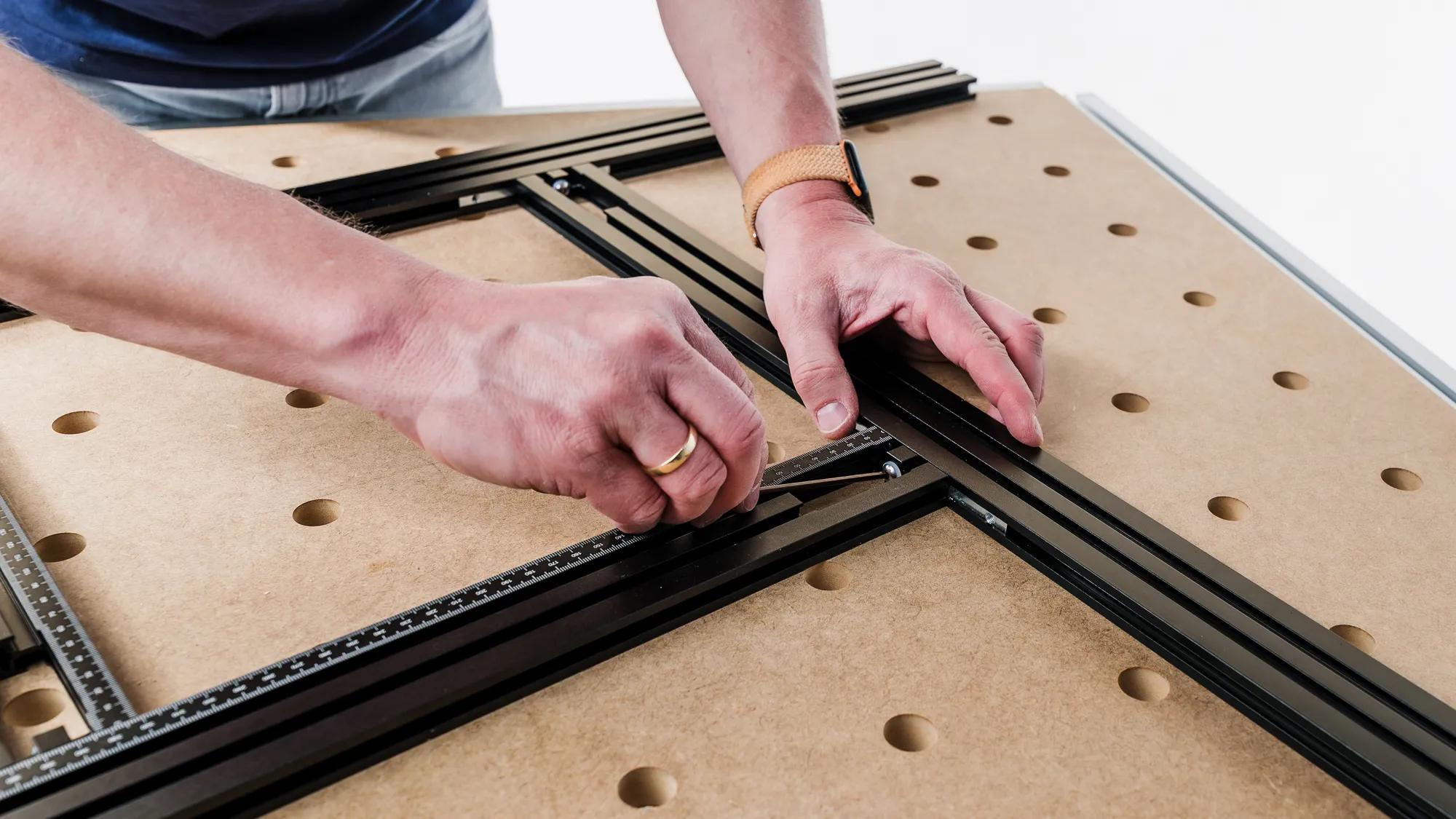

- A quick and easy-to-assemble milling frame, including 2 clamping jaws for securing the frame directly to the workpiece or to the workbench (basic set).

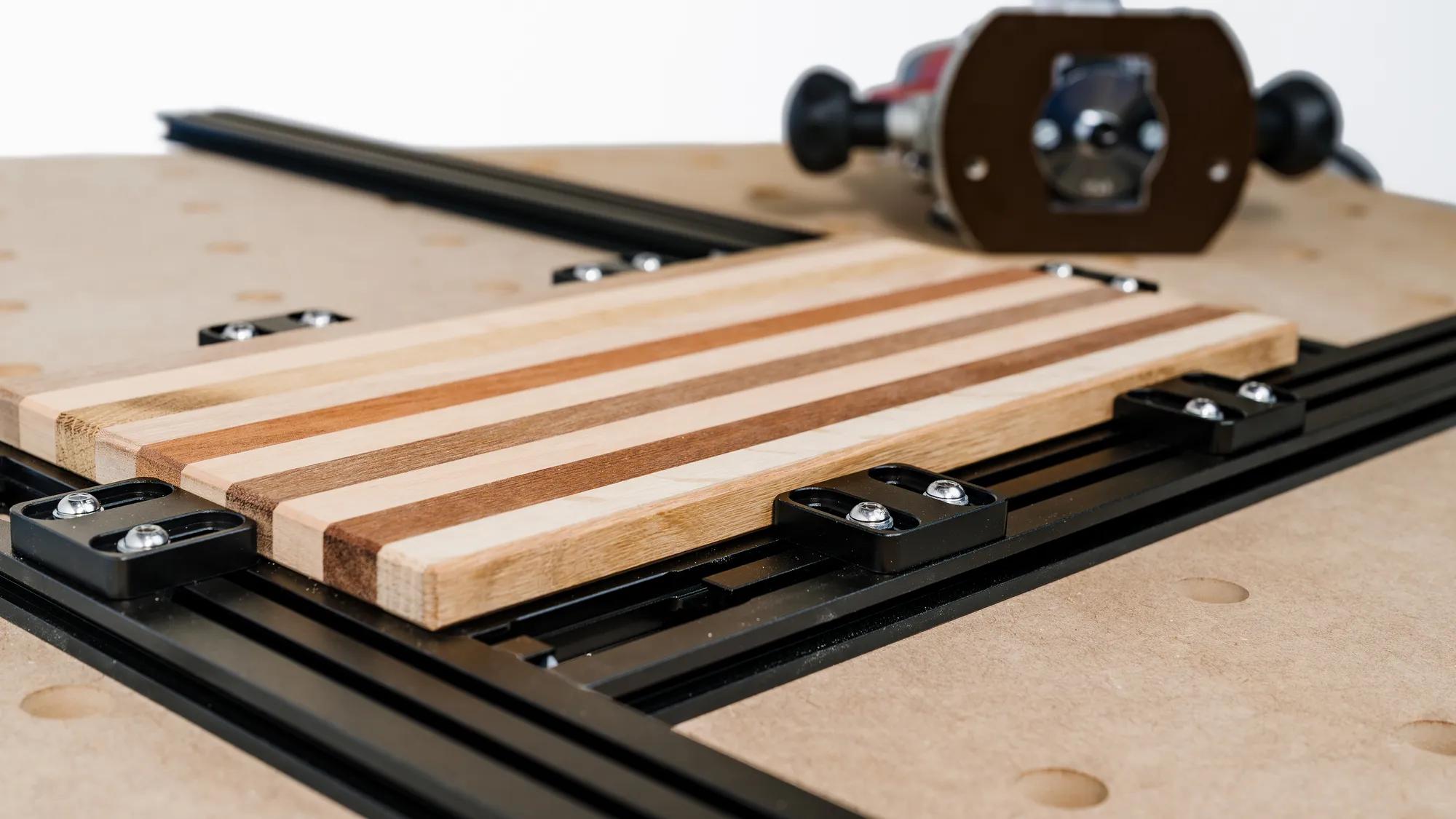

- Extra in the Max Kit: 6 additional clamping jaws for direct machining of the workpiece to the required dimensions, e.g. milling juice grooves on a chopping board.

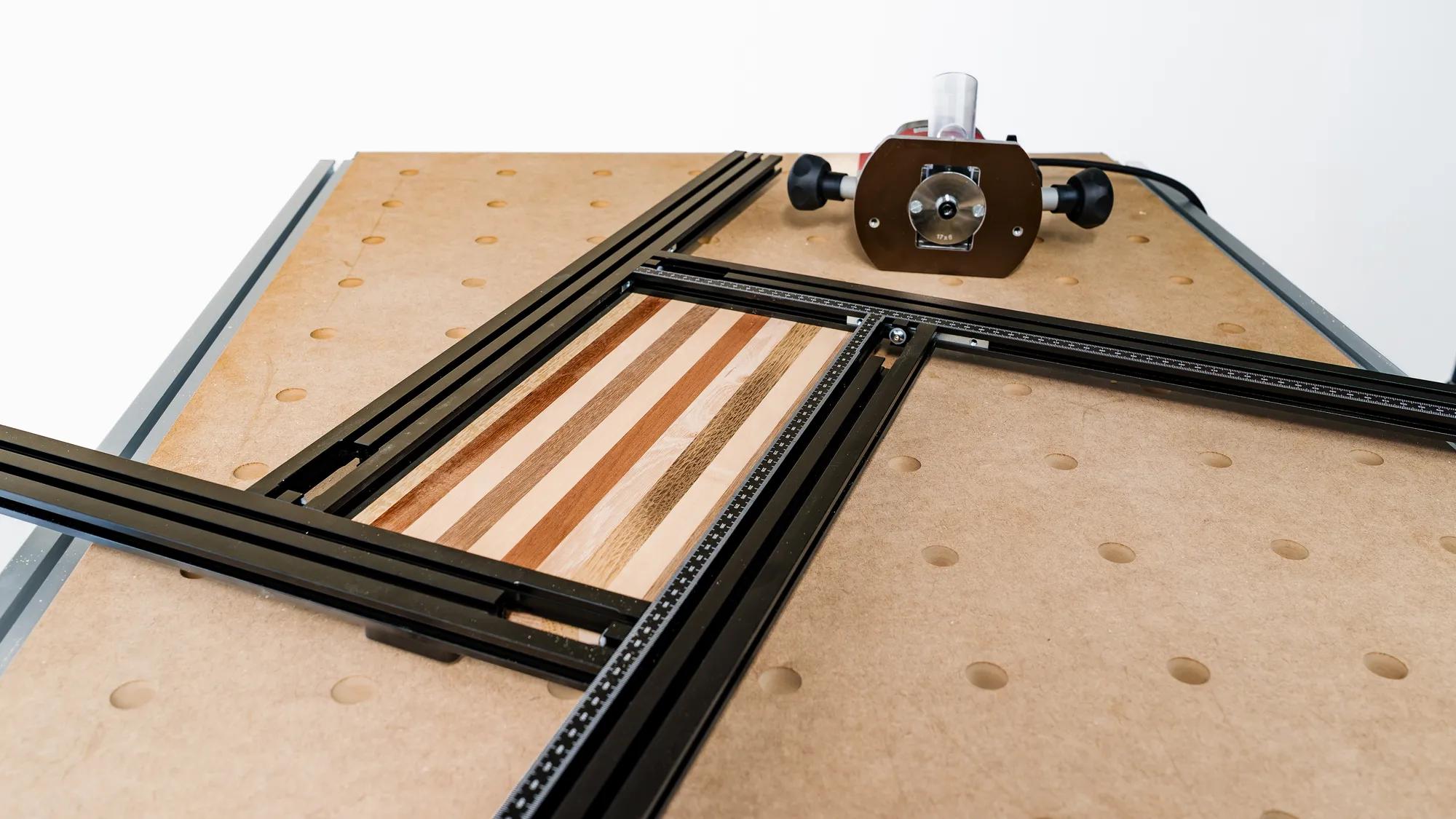

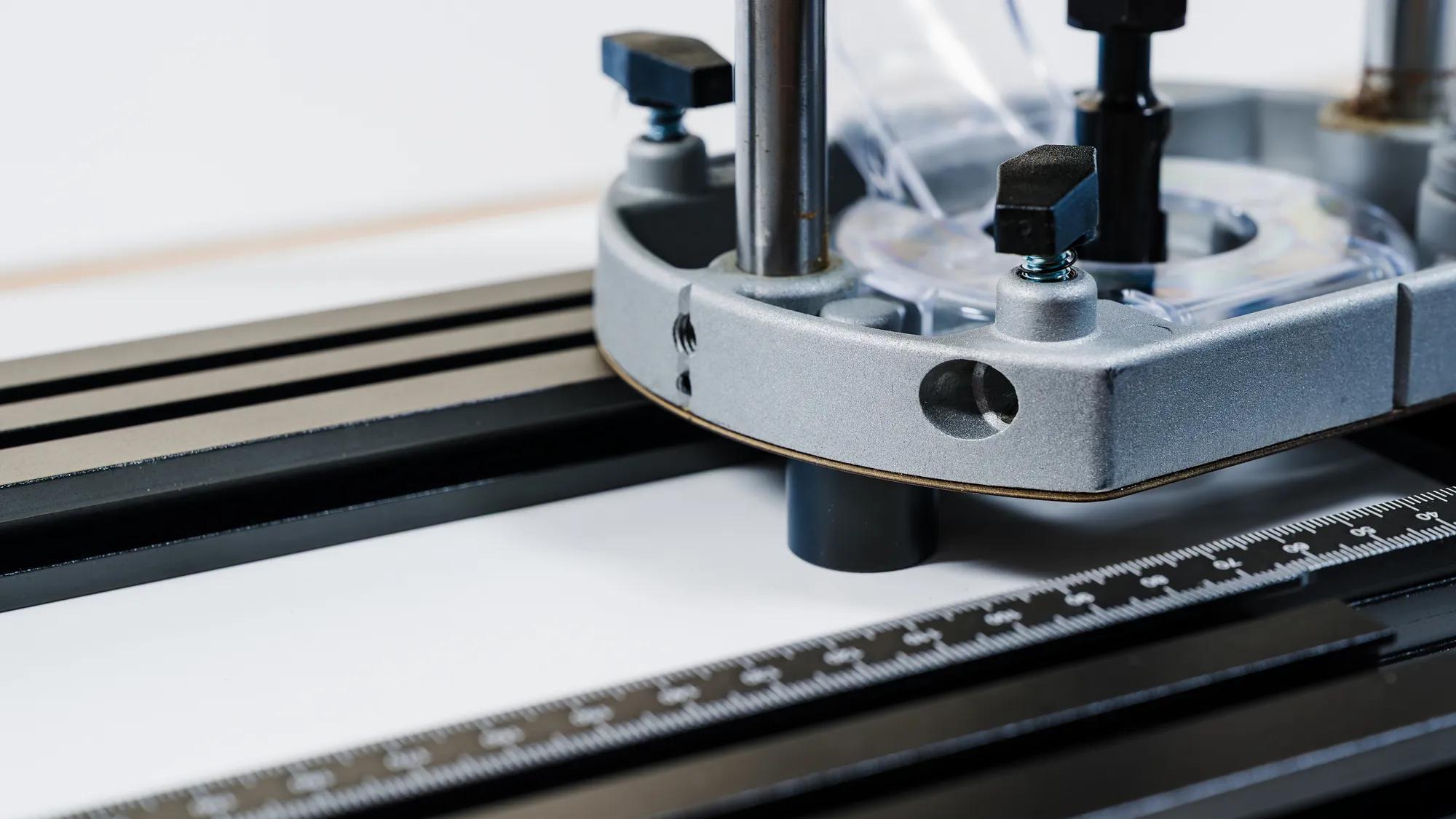

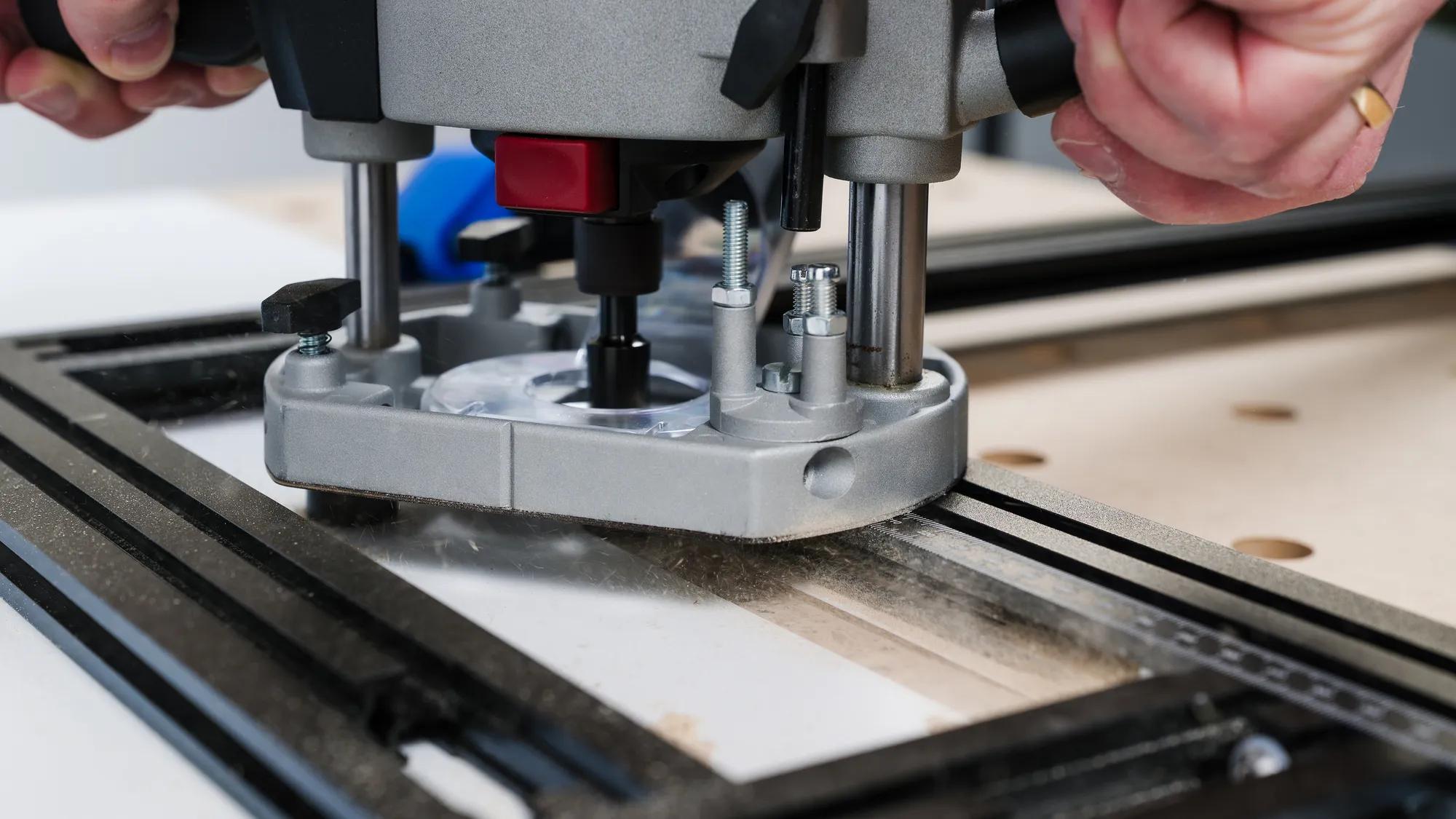

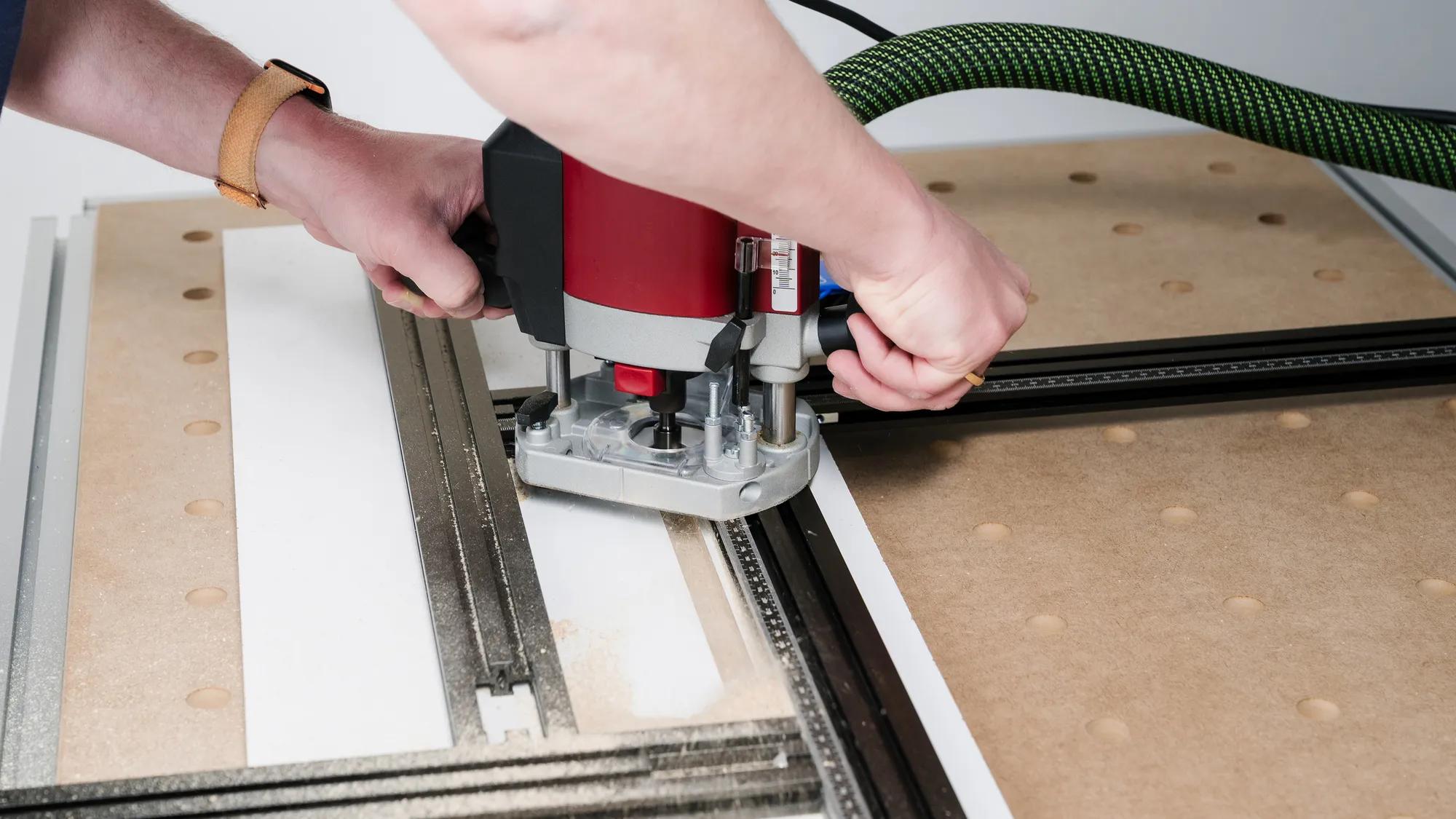

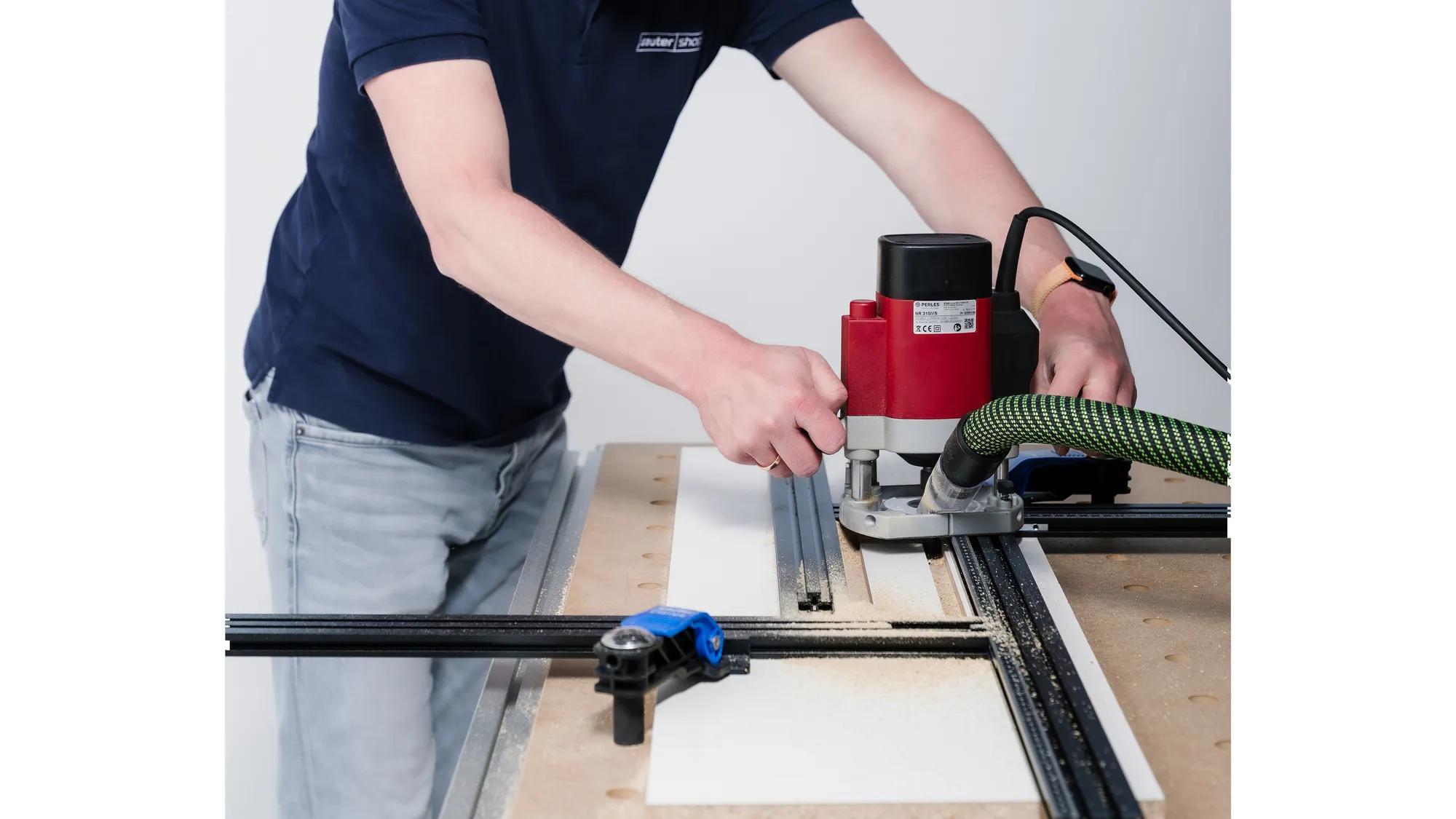

- Quick to set up with a router, copying ring or ball-bearing router bit.

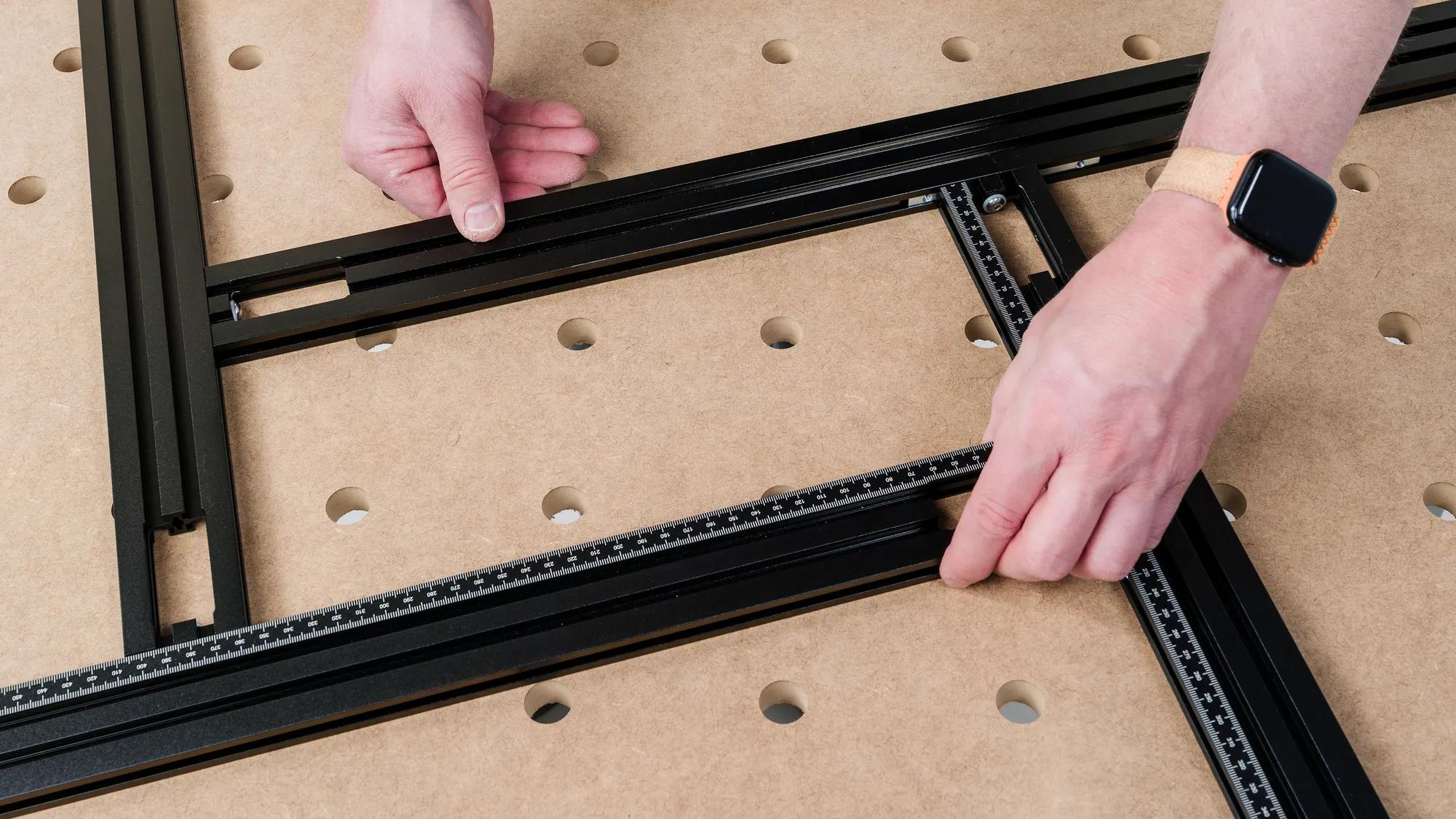

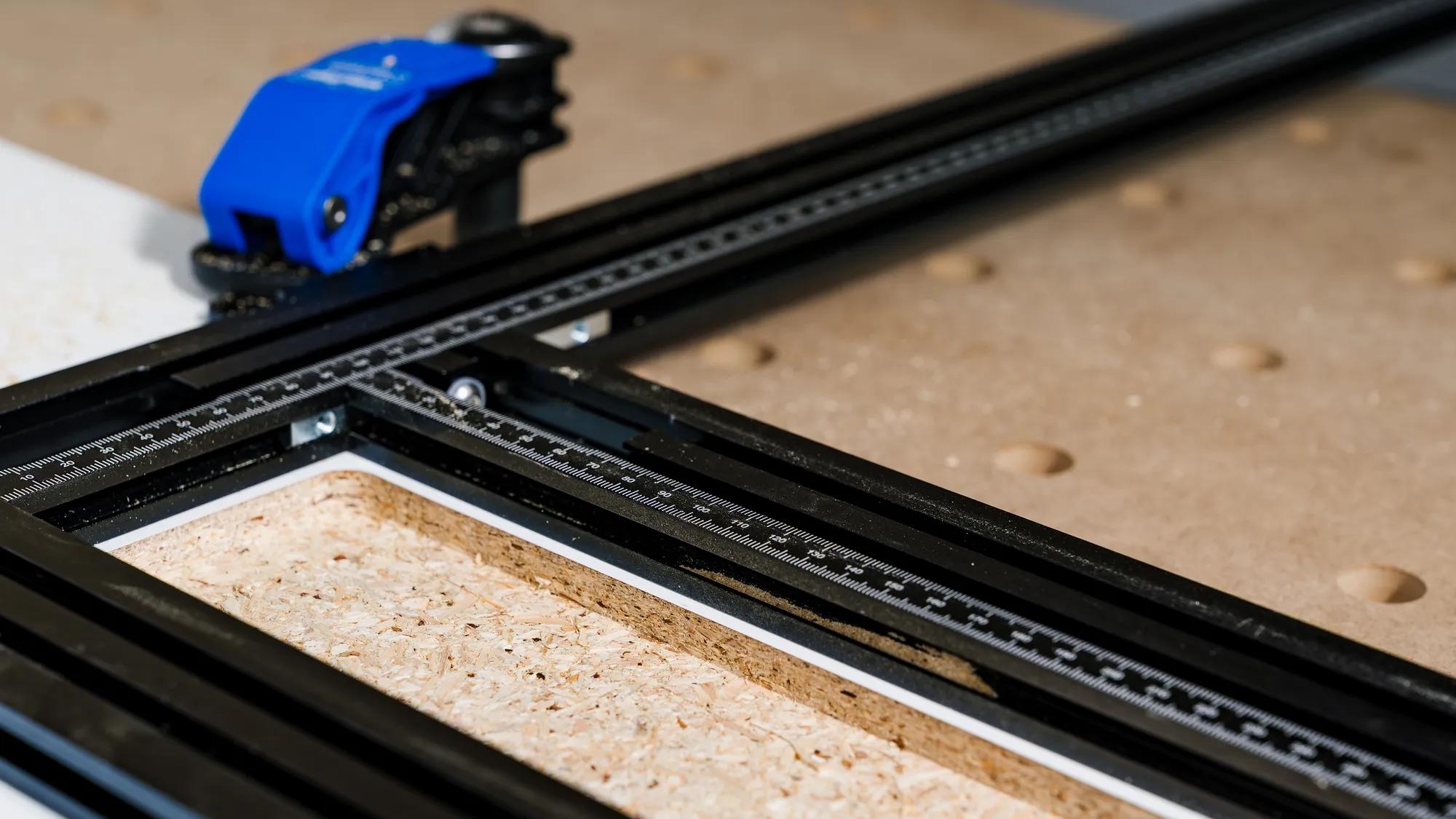

- Metric scale on two of the four frame rails.

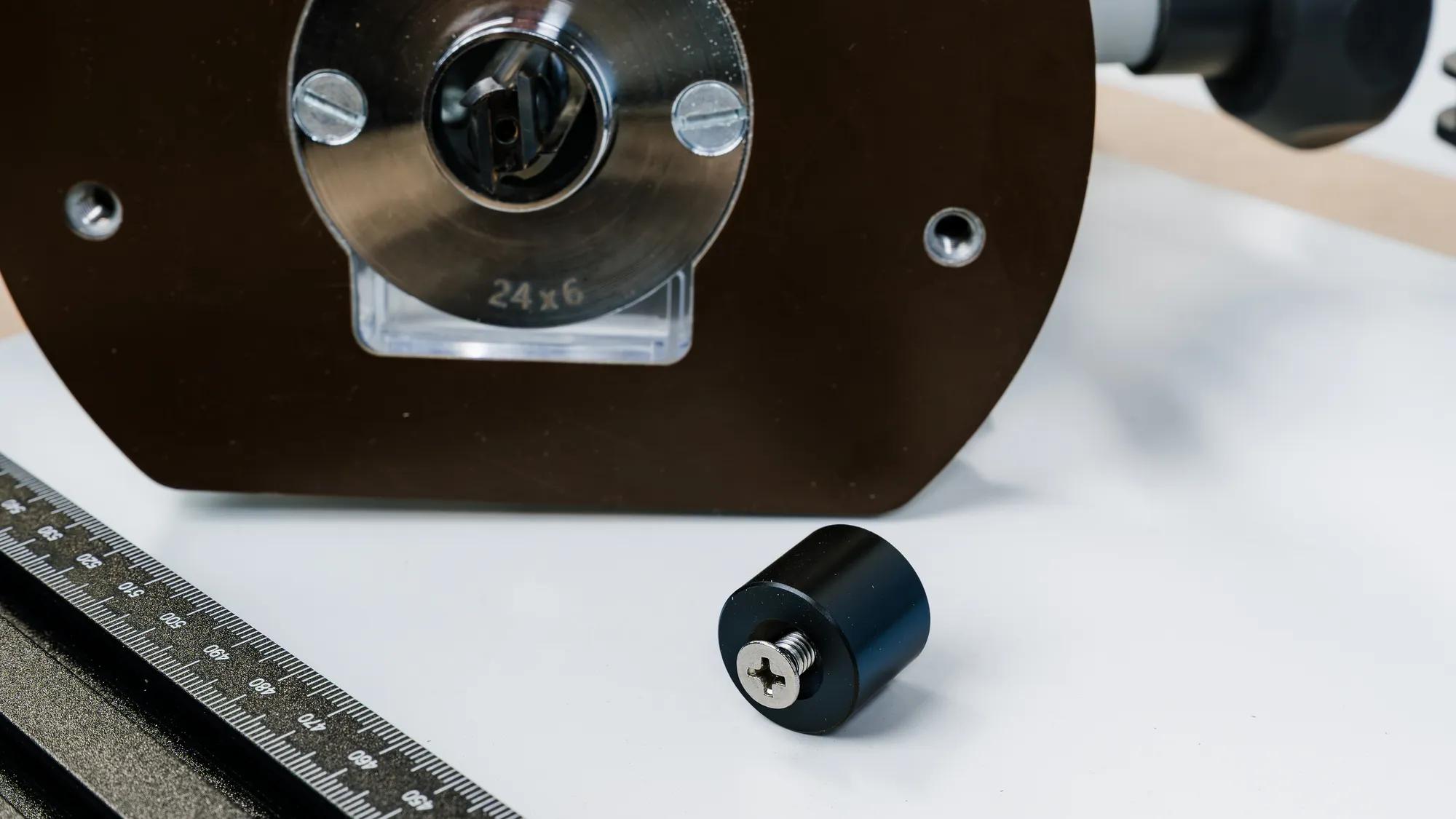

- Includes anti-tilt protection with M4 and M5 screws for optimum height compensation between the frame and the workpiece.
- High-quality, black anodised aluminium frame.
